Fulcrum Racing Zero DB 700 Mm Wheelset | 12×100 – 12×142 Mm | Center Lock | 2021

With the Racing Zero DB wheel, Fulcrum

‘s objective was clear: to create a disc brake wheel that keeps the spirit of the Racing Zero. In this context and given the legend that the engineers had to tackle, achieving this goal was not so easy. By developing a project around the same principles as the traditional brakes, it seems that they succeeded. The feeling on the handlebars will be the same and will offer the same exhilaration until the moment of deceleration at the limit before a turn.

Details

• Tire type: 2-way Fit (for tube and tubeless).
• Wheel diameter: 700 mm / 28″.
• Discipline: road / gravel.
• ASTM category: 2.
• Weight: 1590 g per pair.
• Rim material: aluminum (6082, T6 Pre-Aged), triple milled.
• Profile height: low.
• Rim height: front / rear: 30 mm.
• Rim width: 23.8 mm.
• Internal width: 19 mm.
• Tire width: 23 – 50 mm.
• Braking system: disc brake.
• Axle system AFS (Axial Fixing System).
• Front axle compatibility: HH12-100.
• Rear axle compatibility: HH12-142.
• Number of spokes: front: 21, Two-to-one (14 Left – 7 Right) / rear: 21, Two-to-one (7 Left – 14 Right).
• Spokes material: aluminum.
• Spokes profile: aero, straight pull.
• Nipples: aluminum.

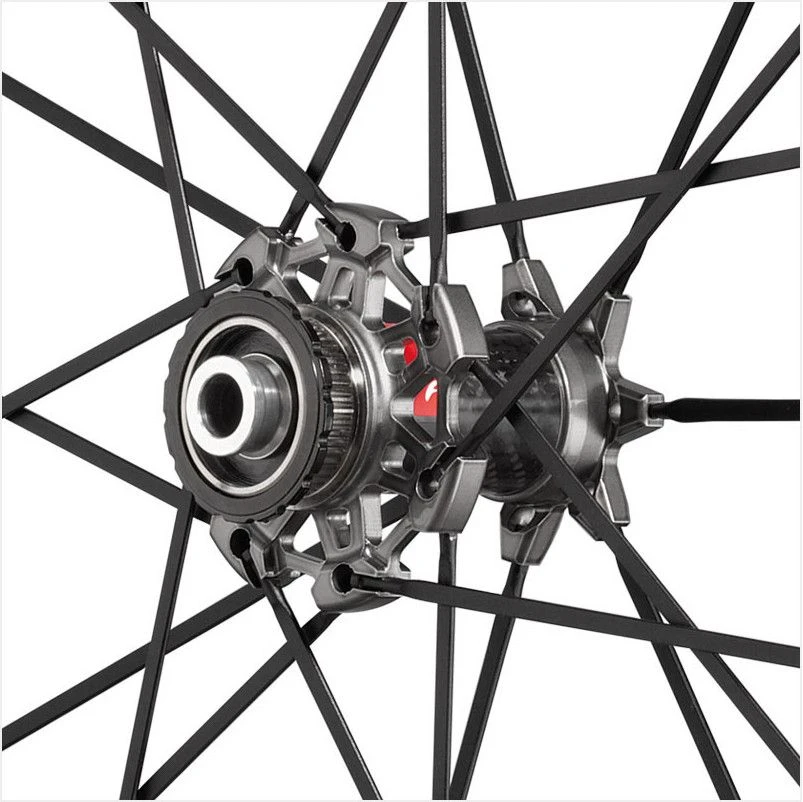

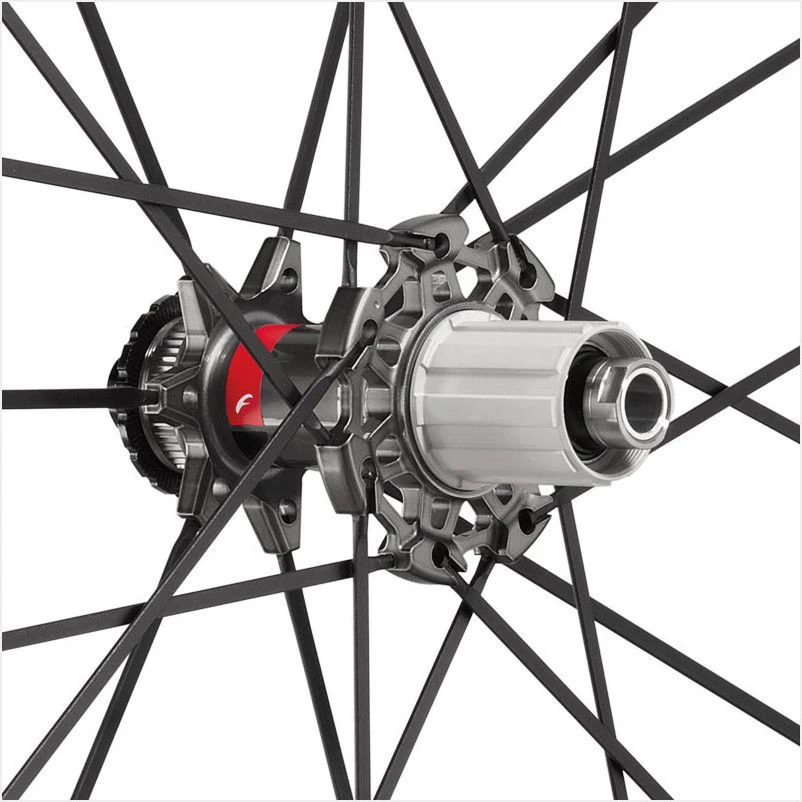

• Hubs: front: carbon, aluminum flange / rear: aluminum, aluminum flange.
• USB ceramic bearings, adjustable cone / cup system.
• Plasma treatment on HG freewheel body. Aluminum axle. Reflective graphics.
• Weight limit: 109 kg (the maximum weight of the cyclist).

References

• R0-20DFR22AC: Racing Zero DB C19 2WF AFS front HH12 – rear HH12/142 CAMPY – USB + KIT DRP + 2WF VALVE.
• R0-20DFR22AS : Racing Zero DB C19 2WF AFS front HH12 – rear HH12/142 HG11 – USB + KIT DRP + 2WF VALVE.
• R0-20DFR22AX : Racing Zero DB C19 2WF AFS front HH12 – rear HH12/142 XDR – USB + KIT DRP + 2WF VALVE.
