Wolf-tooth Wolf Tooth B-RAD 4 Slot Base Black

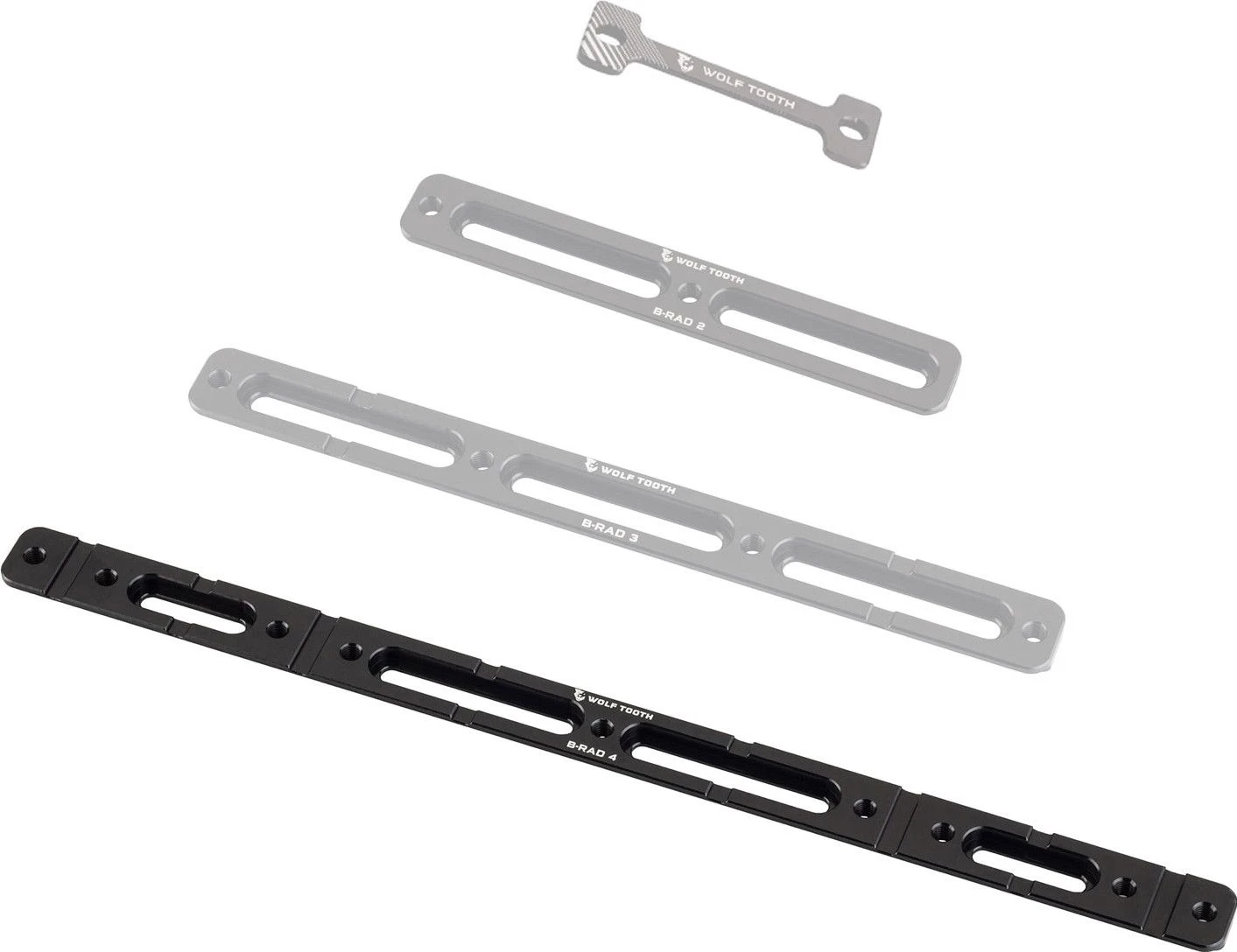

Bases are the foundation for the B-RAD system and the rest of the B-RAD system mounts to them:

• Reposition bottle cages using existing bottle cage mounts on your bike.
• Lightweight, durable, rust-proof materials.
• Customize storage to your specific needs with flexible B-RAD system.

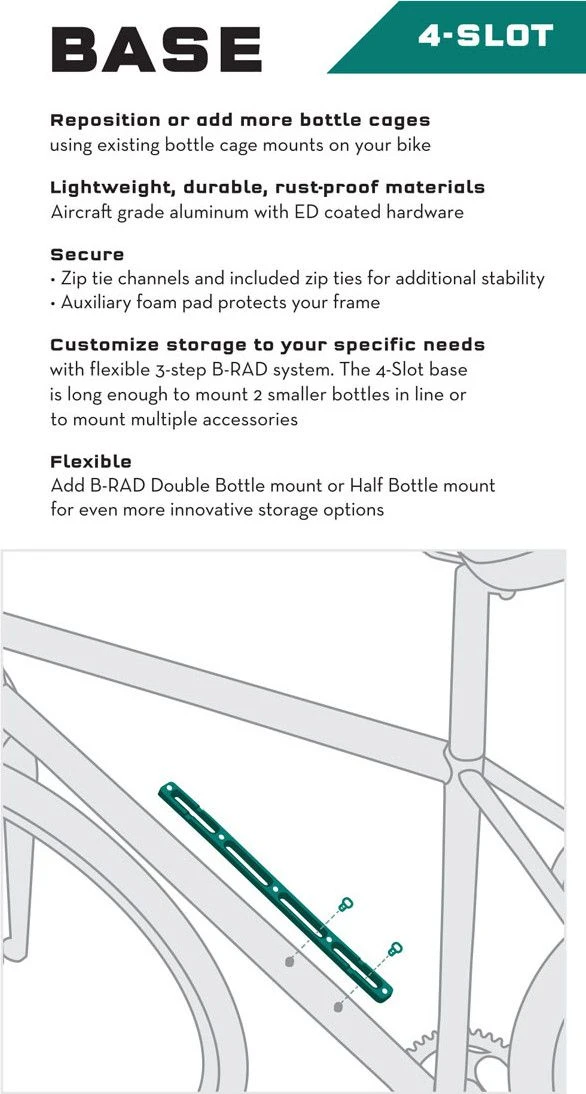

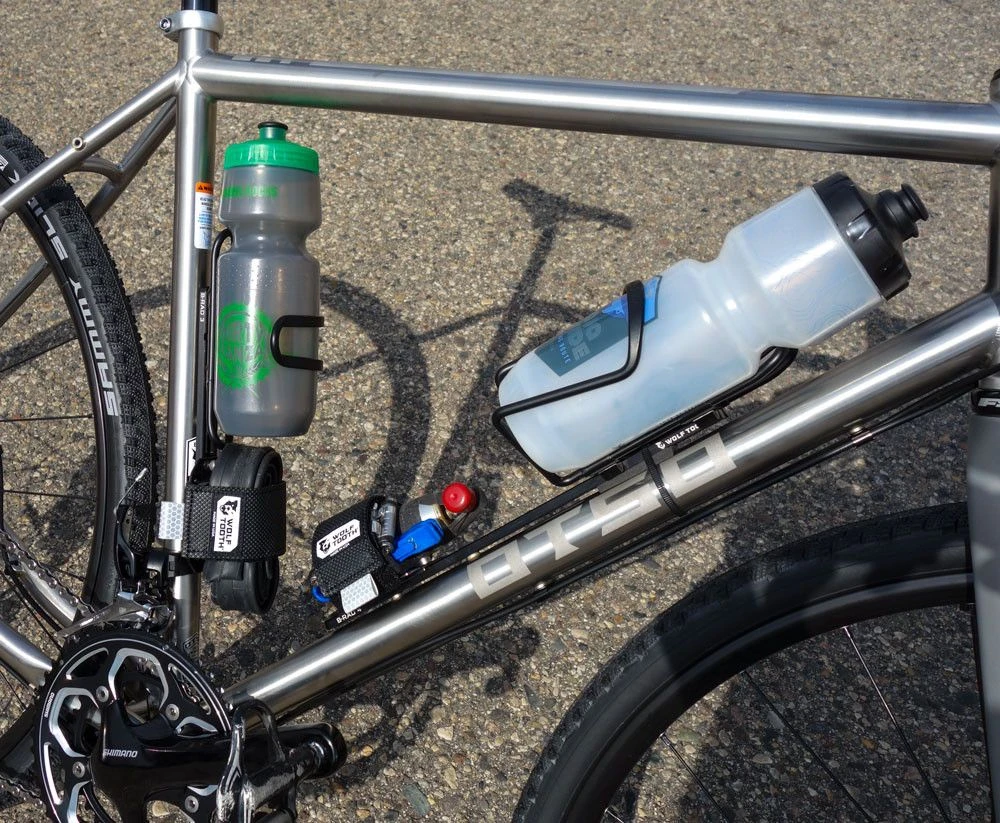

The 4-Slot Base of the Wolf Tooth B-RAD 4 is the longest base with 9 threaded holes for the ultimate flexibility and capacity when bike packing, touring, commuting or just exploring on 2 wheels. It′s long enough to mount 2 small bottles inline or multiple accessories. The B-RAD 4 includes zip ties, channels for the zip ties, and a foam pad for secure mounting.

Features:

• Weight: 75 g.
• Materials: 6061-T6 aluminum bracket, EVA foam pad.
• Thickness: 6 mm.
• Torque: 3-4 Nm.
• Max Load: 1700 g per base.
• Made in the USA.

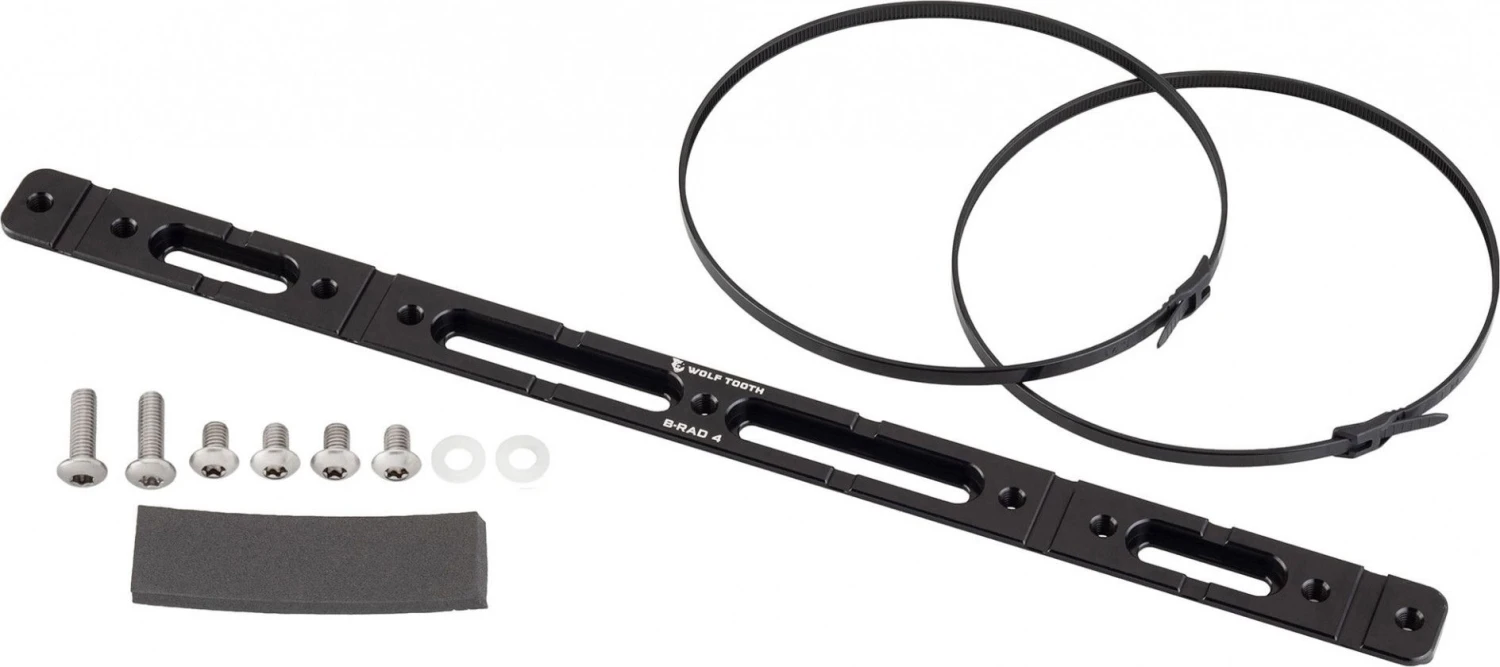

Parts included:

• B-RAD 4 Base (4 slot).
• x2 long screws M5x16 mm.
• x4 short screws M5x7.5 mm.
• x2 shims M5 nylon washer.
• x2 zip tie, 35 cm (14″) length.
• x1 protective pad, 9 cm (3.5″) length.

Compatibility:

• Mounting any of the bases requires the use of at least 2 standard threaded bottle cage mounts. B-RAD 3 and 4 should use the auxiliary foam pad (to protect your frame) and zip tie to secure the base. Any other mounting methods are not recommended.
• You may need a Problem Solvers Space Out Kit or similar method to clear the front derailleur clamp. Be sure to use bolts with additional length equivalent to the extra spacing added.
• Compatible with any frame that uses standard 64 mm spacing bottle cage braze-ons (basically every modern frame).
